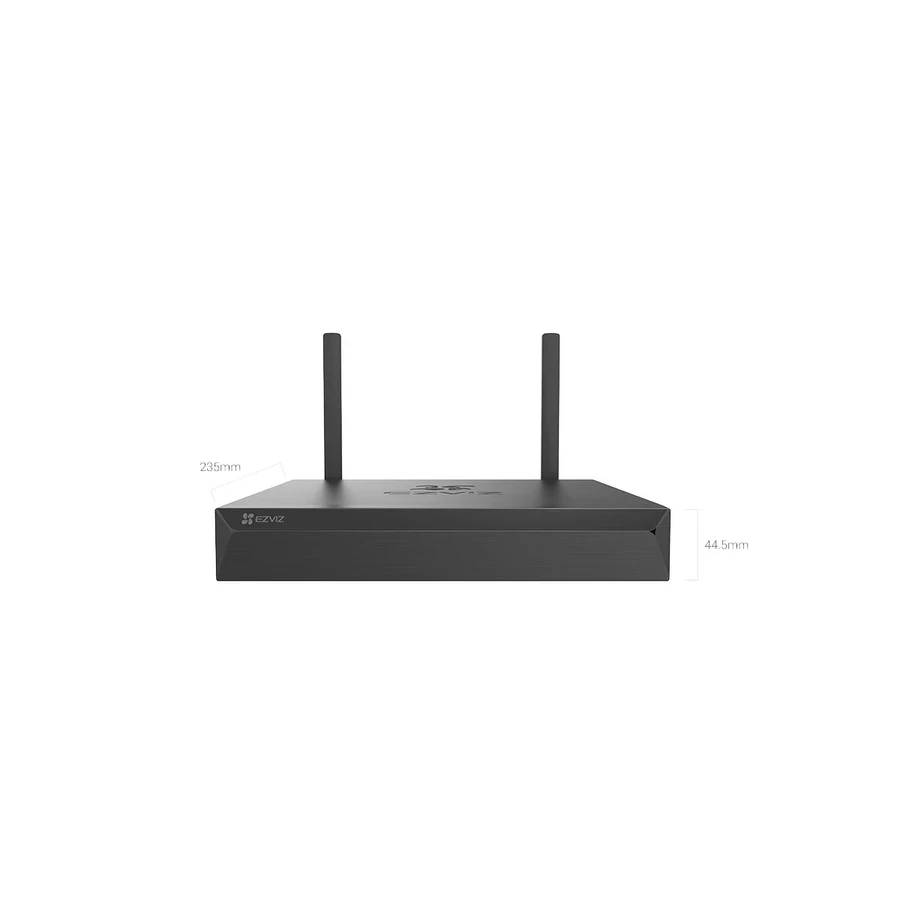

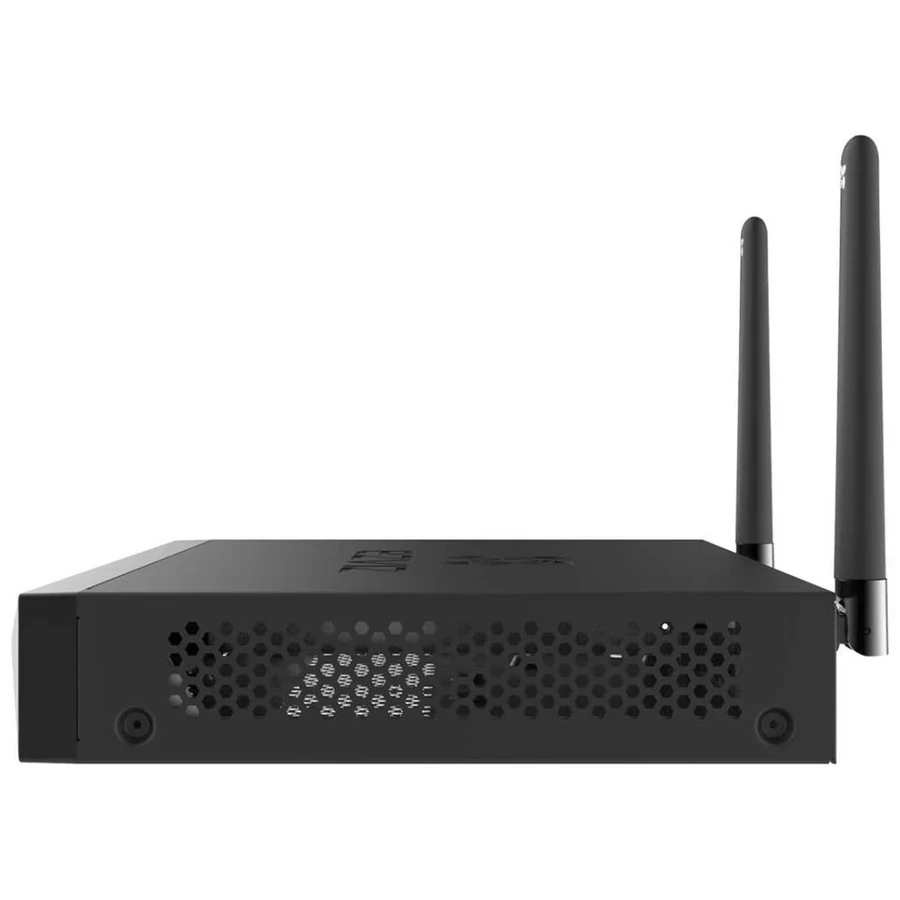

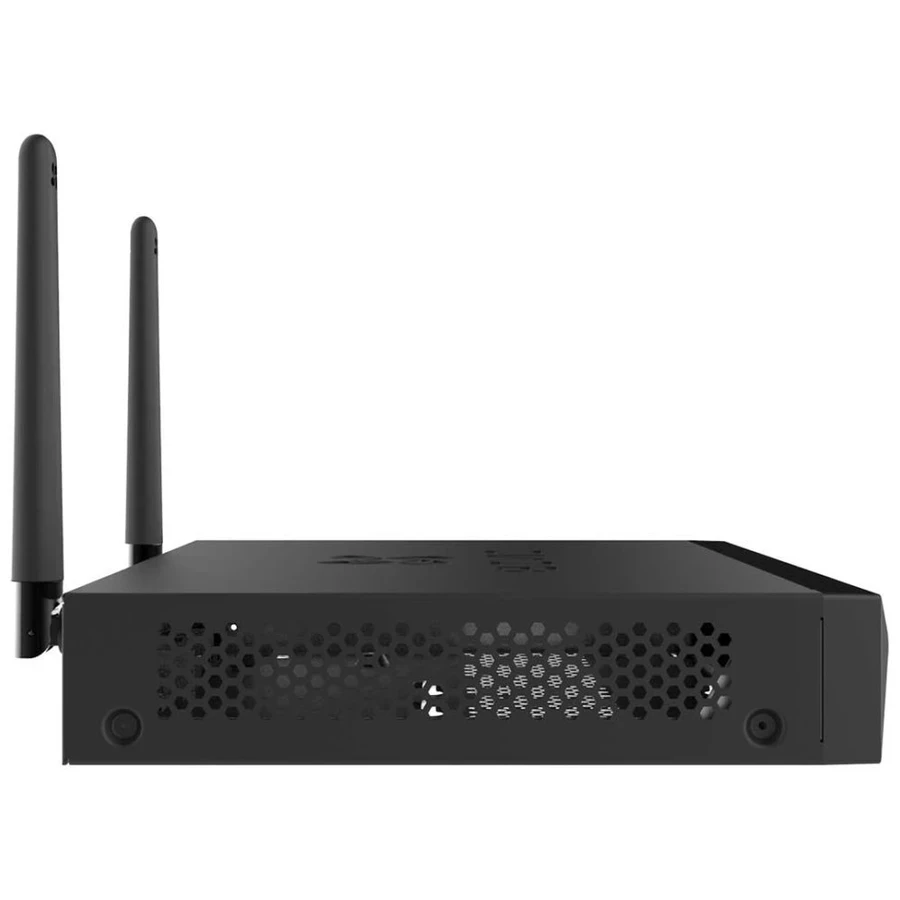

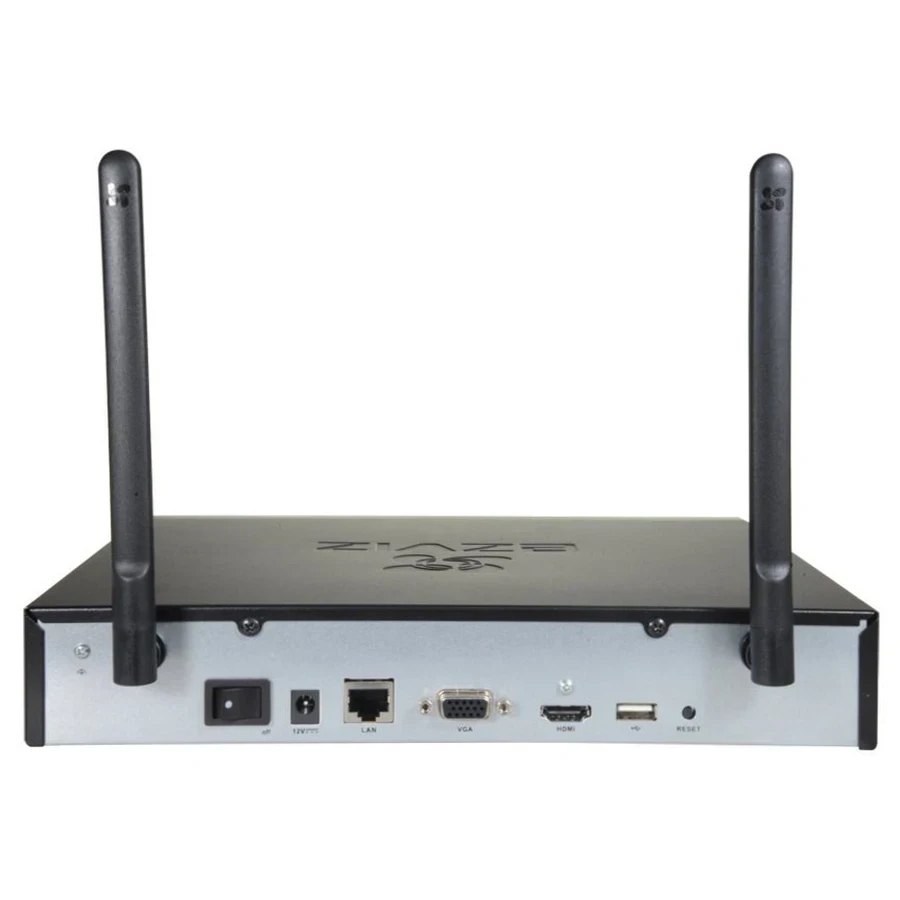

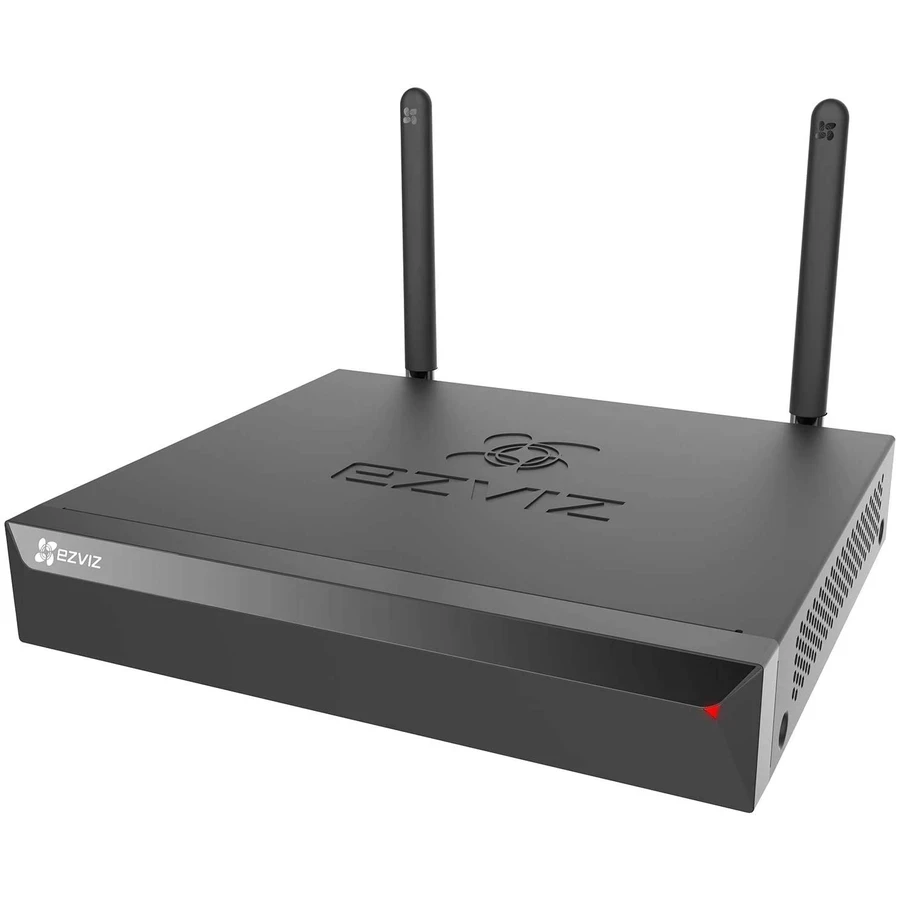

EZVIZ CS-X5S-R100-4W/8W Wireless NVR | 3K Resolution Support | H.265 Compression | 100m Range | 8TB HDD Support
|
Specification Category |
EZVIZ CS-X5S-R100-4W |
EZVIZ CS-X5S-R100-8W |
|
Channel Capacity |
4-Channel IPC Access |
8-Channel IPC Access |
|
Max IPC Resolution |
3K (Up to 5 Megapixel) |
3K (Up to 5 Megapixel) |
|
Access Bandwidth |
50 Mbps |
100 Mbps |
|
Video Compression |
H.265 / H.264 |
H.265 / H.264 |
|
Wireless Range |
100m (Max Line of Sight) |
100m (Max Line of Sight) |
|
Antenna Setup |
Dual External Antennas |
Dual External Antennas |
|
HDMI Output |
2592 x 1944 @ 30Hz |
2592 x 1944 @ 30Hz |
|
VGA Output |
1920 x 1080 @ 60Hz |
1920 x 1080 @ 60Hz |
|
Storage Interface |
1x SATA (Up to 8TB) |
1x SATA (Up to 8TB) |
|
Decoding Playback |
Supports 4 x 3K Streams |
Supports 8 x 3K Streams |
|
Network Interface |
1x 10/100M Ethernet Port |
1x 10/100M Ethernet Port |
|
Open Protocol |
ONVIF / HIKVISION |
ONVIF / HIKVISION |
|
USB Connectivity |
2x USB 2.0 Ports |
2x USB 2.0 Ports |
|
Product Weight |
932 g (Net) |
932 g (Net) |
- 3K Ultra-HD IPC Access: Supports high-resolution recording and playback up to 3K, providing exceptional clarity and detail for critical security monitoring.

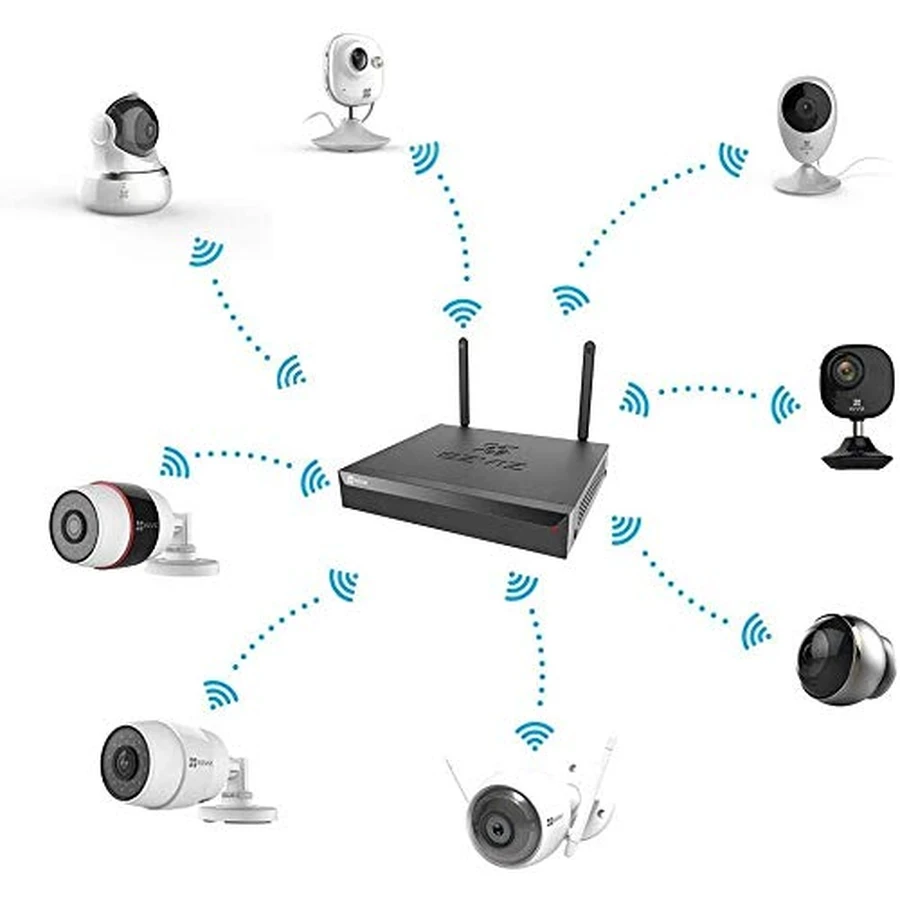

- Extended Wireless Coverage: Equipped with dual external antennas that deliver a powerful signal with a line-of-sight wireless range of up to 100 meters.
- Efficient H.265 Compression: Uses advanced video encoding to reduce bandwidth requirements and storage space by up to 50% compared to standard H.264.
- High-Capacity SATA Storage: Features a built-in SATA interface that supports 3.5-inch hard drives ranging from 1TB to 8TB for long-term video retention.
- Broad Compatibility & Open Protocol: Fully supports ONVIF and Hikvision protocols, allowing for seamless integration with a wide variety of third-party IP cameras.
