Specification Category |
Feature |
Technical Detail |
|
General |
SAP No / Ref No |
100141307 / EDL4170 |
|
|
Tool Name |
Laser Distance Measure (LDM) |
|
|
Colour |
YELLOW |
|
|
HS Code |
9015109000 (Measuring apparatus, distance) |
|
Tool Specs |
Max Measuring Range |
100m |
|
|
Accuracy |
Millimeter-level |
|
|
Laser Type |
Dual Laser Projection |
|
|
Display Size |
1.7 inch |
|
|
Housing Material |
ABS |
|
Functions |
Data Storage |
30 groups |
|
|
Calculation Modes |
Area, Volume, Pythagorean (single/dual), Continuous (Max/Min), Add/Subtract |
|
Physical |
Product N.W (Unit) |
0.19667 KG (196.67 G) |
|
Units |
Metric and Imperial (Inferred) |
|
|
Laser Class |
Class II (Inferred) |
|
|
Application |
Construction Site Layout, Interior Design, Room Measurement, Estimating |
|
|
Measurement Reference |
Front/Back/Tripod (Inferred) |
|

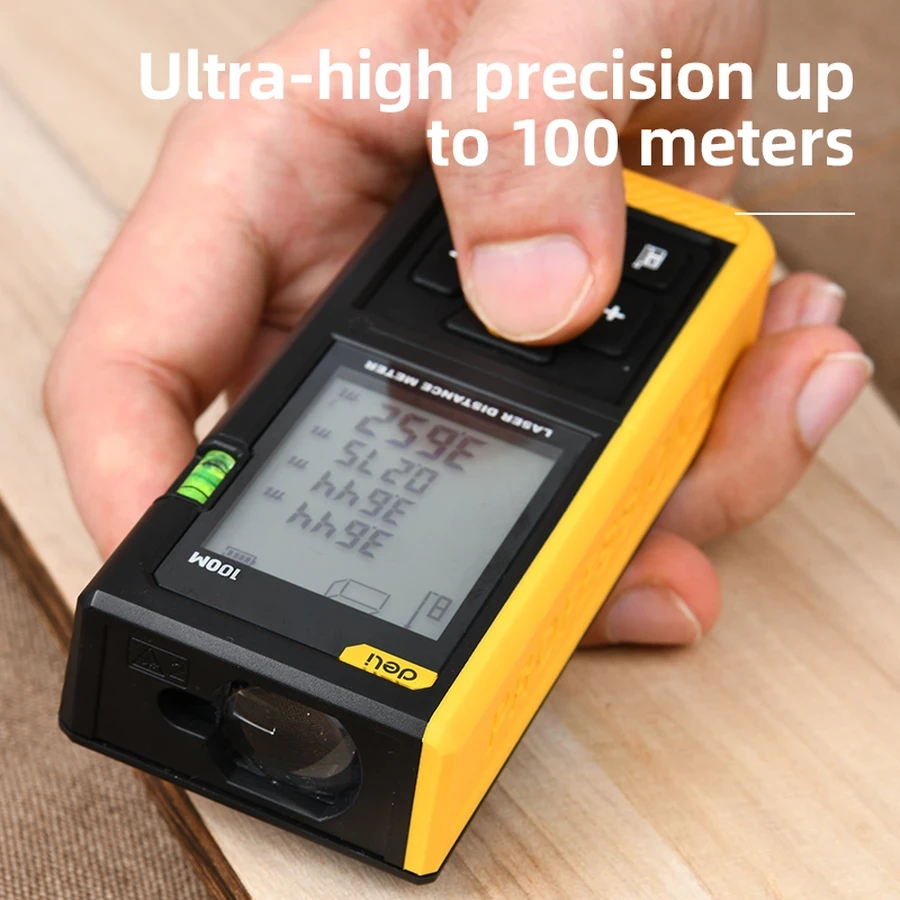

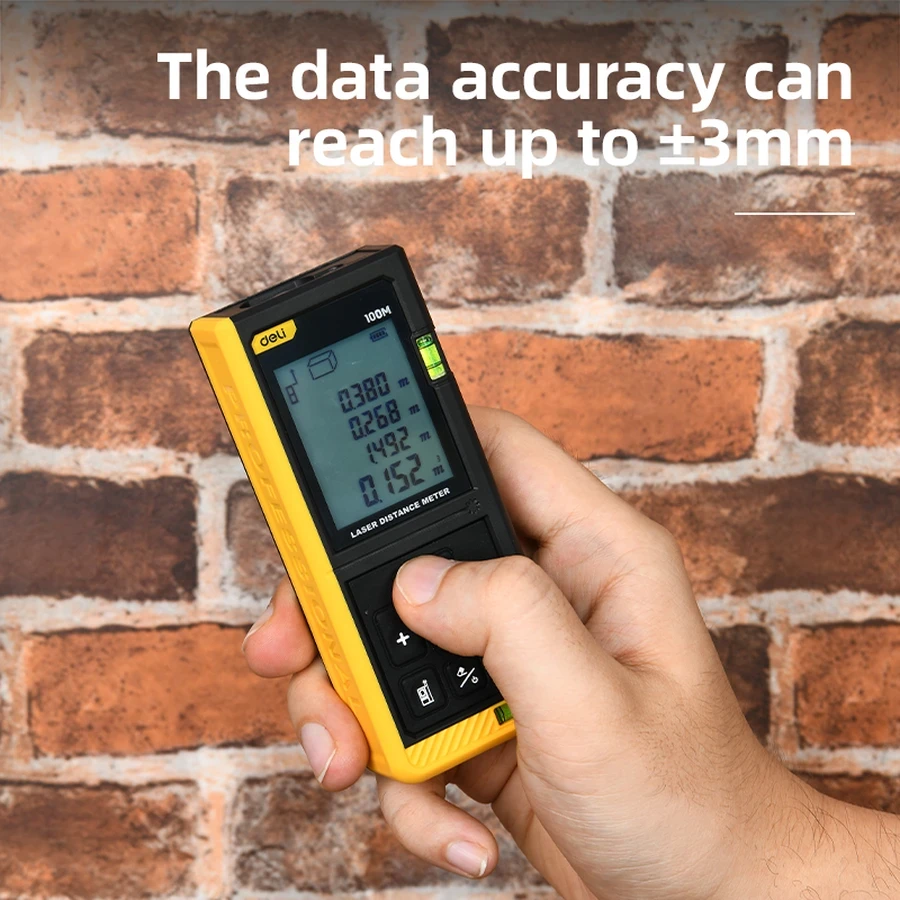

Long Range & Precision: Offers a substantial 100m measuring range with exceptional Millimeter-level accuracy (Sales Point 4), making it suitable for professional site measuring and estimating.
Advanced Laser Technology: Features Dual laser projection (Sales Point 3), which enhances target visibility and improves measurement stability, especially over longer distances.
Comprehensive Calculation Modes: Includes multiple complex functions (Sales Point 5) such as volume and area measurement, Pythagorean theorem measurement, addition/subtraction, and continuous/max/min measurement, speeding up on-site calculations.

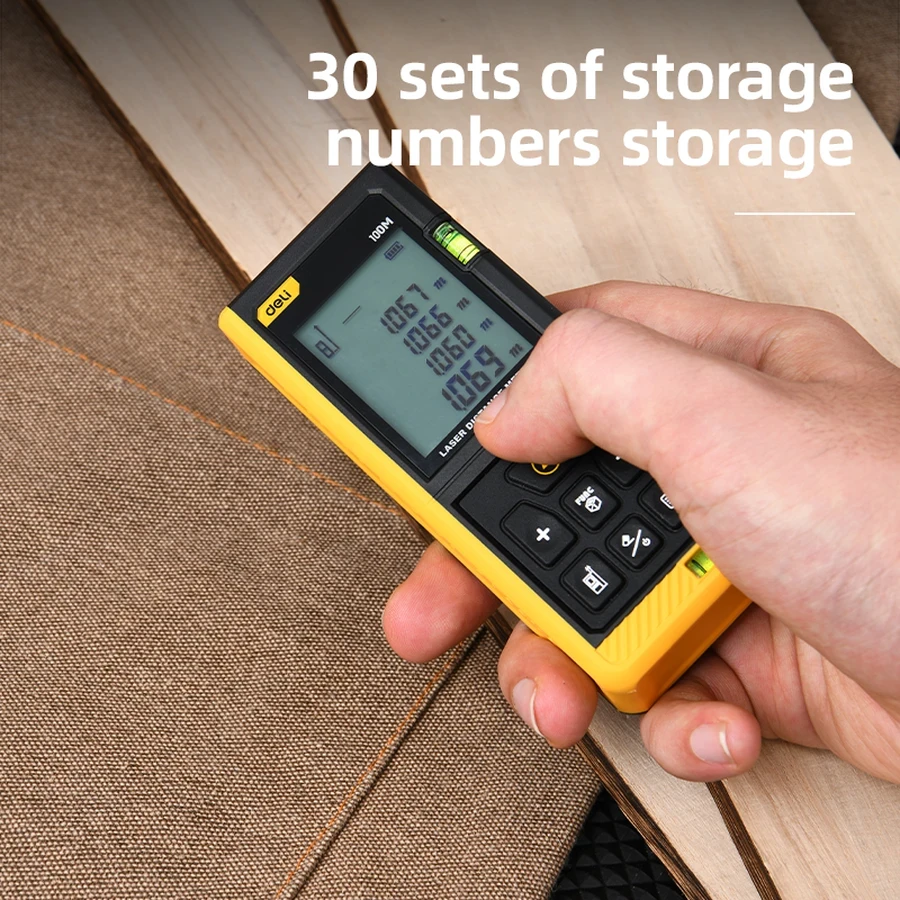

Large Memory & Display: Equipped with a clear 1.7 inch display (Sales Point 2) and capacity for 30 groups of data storage (Sales Point 1), allowing for efficient logging and retrieval of key measurements.
Durable and Portable: Housed in a lightweight but strong ABS shell, with a net weight of 196.67 G, designed for comfortable, single-handed operation on the job site.
