Specification Category |
Feature |
Technical Detail |
|
General |
SAP No / Ref No |
100158704 / EDL111230Z |
|
|

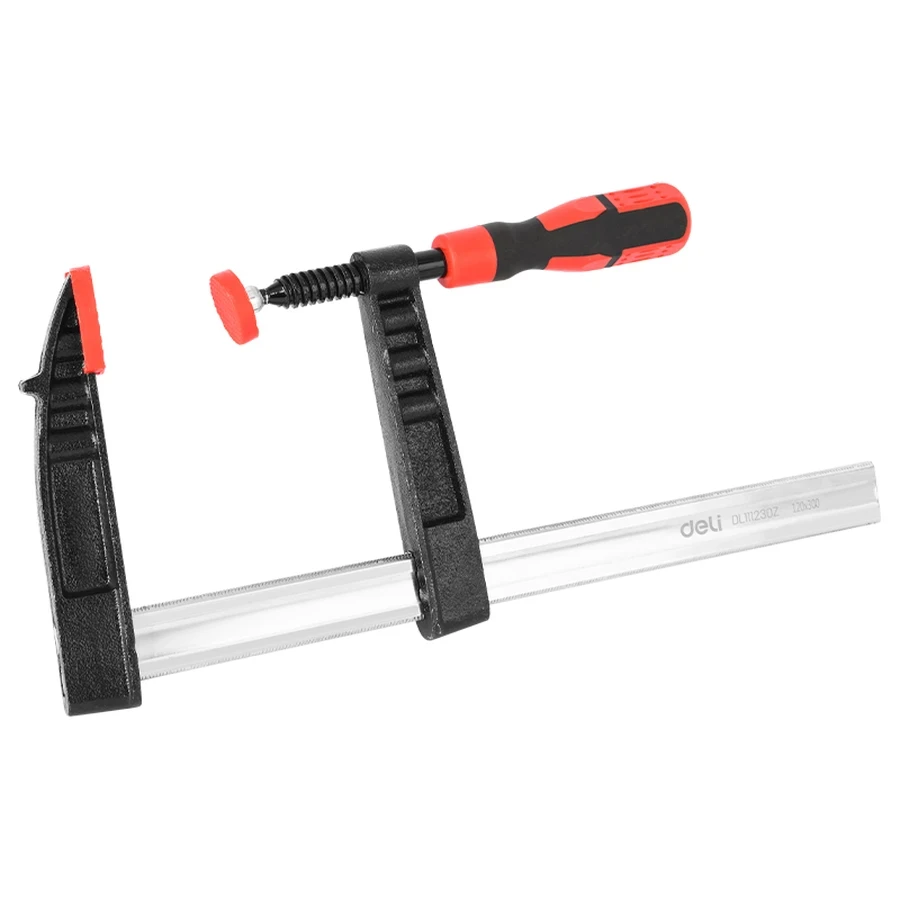

Tool Name |
Heavy Duty F Clamp |
|
|
Colour |
YELLOW+BLACK |
|
|
HS Code |
8205700000 (Vices, clamps, and similar fixtures) |
|
Tool Specs |
Clamping Capacity (L x T) |
300mm x 120mm |
|
|
Max Clamping Force |
3500 N |
|
|
Bar Thickness |
8mm |
|
|
Screw Thread Diameter |
16mm |
|
|
Material |
A3 Steel + Malleable steel |
|
Physical |
Product N.W (Unit) |
1.52 KG (Per unit) |
|
|
Product Dimensions |
39.0 x 18.0 x 3.0 CM |
|

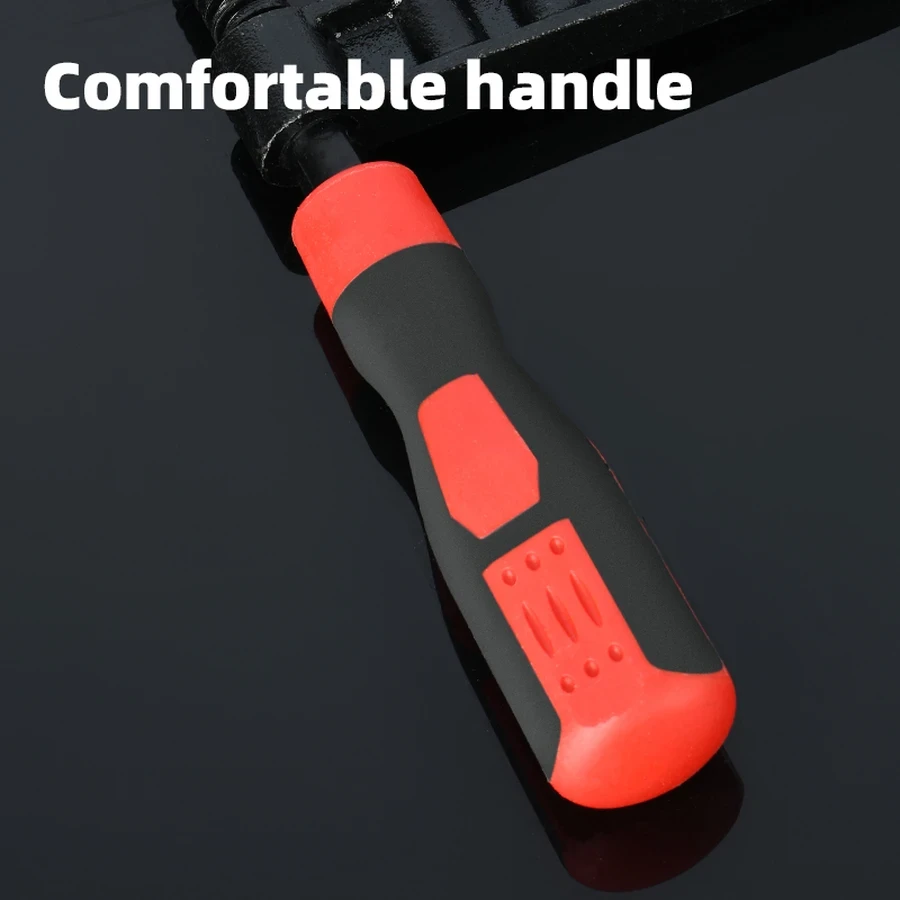

Handle Type |
Wooden or Durable Plastic T-Handle (Inferred) |
|
|

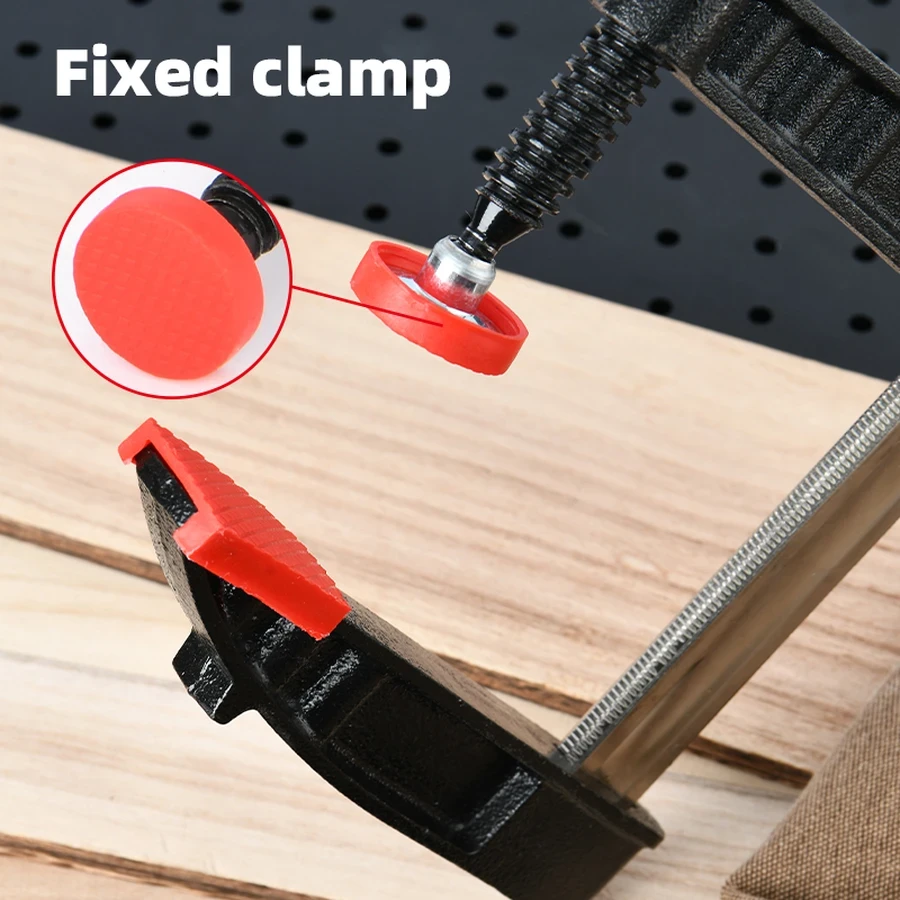

Jaw Pads |
Non-Marring Plastic Covers (Inferred) |
|
|
Application |

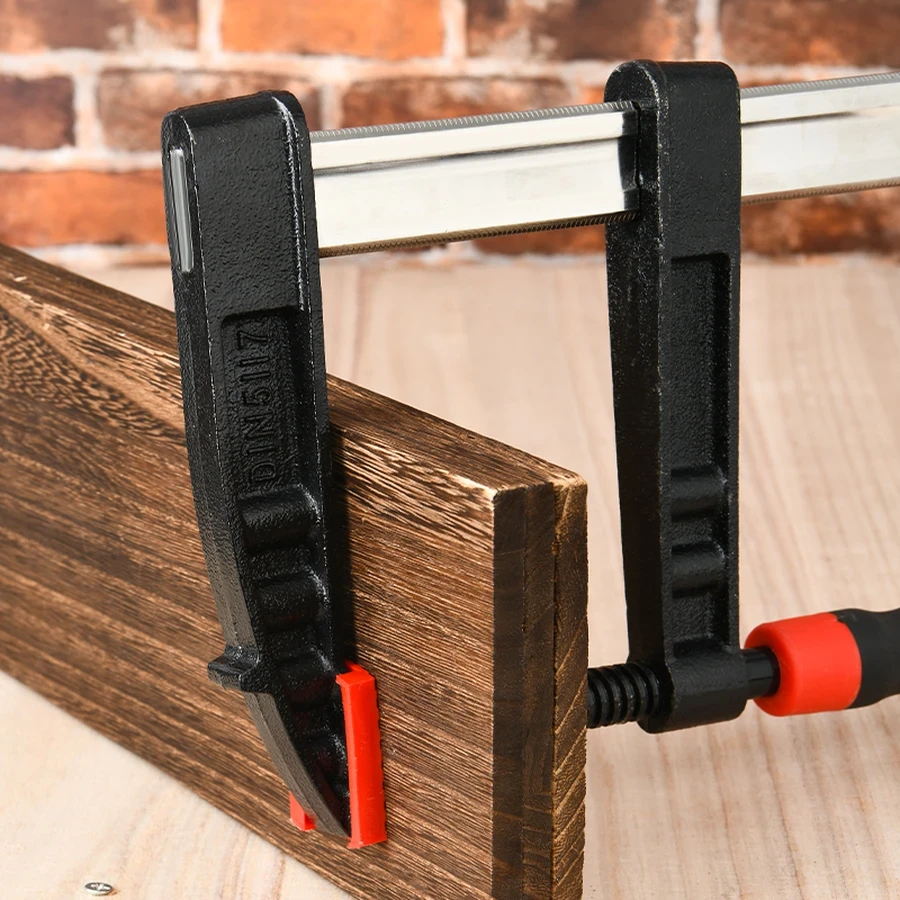

Heavy Gluing, Welding Fixture, Assembly, Frame Work |
|
|
Slider Design |
Drop-Forged Steel Slider (Inferred) |
|
High Clamping Force: Delivers a maximum clamping force of 3500N (Sales Point 1), providing exceptional holding power necessary for heavy-duty woodworking, gluing, and metal fabrication tasks.
Large Capacity: Features a generous 120mm throat depth and 300mm opening length (Size & Spec), making it suitable for clamping large boards, frames, and deep workpieces.
Heavy-Duty Bar: Constructed with an 8mm thick iron ruler (Sales Point 2), preventing flexing and ensuring consistent pressure application even under maximum load.

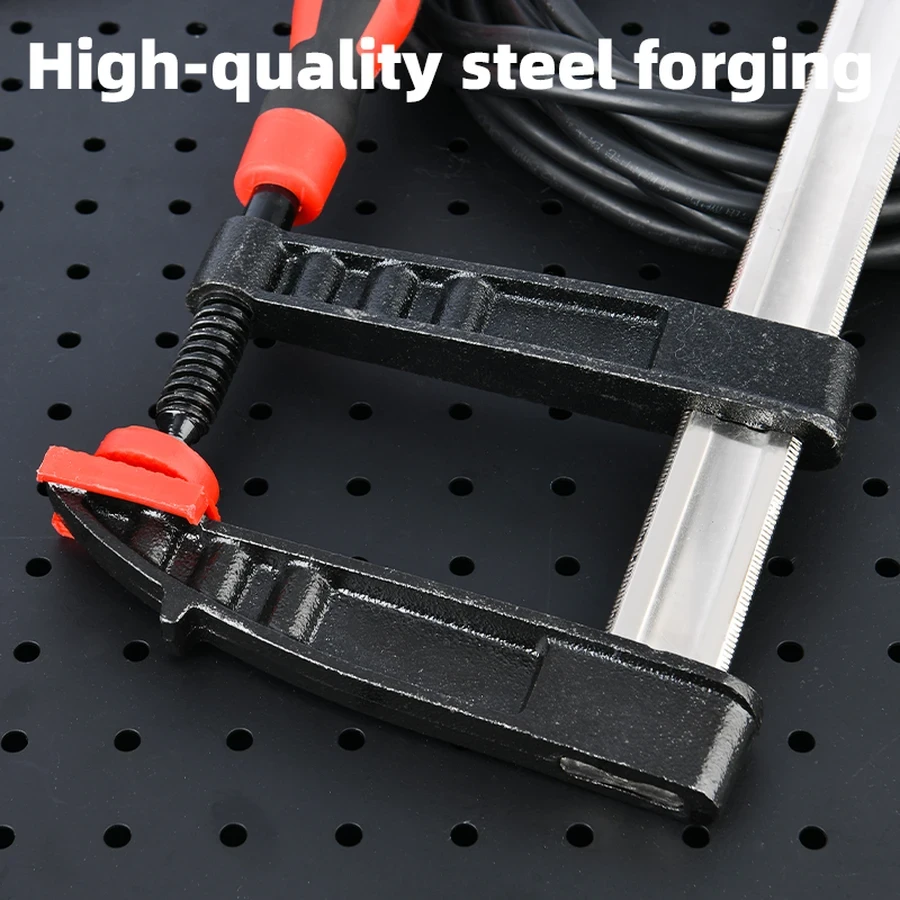

Durable Construction: Built from a blend of A3 Steel (bar/main structure) and Malleable steel (head/jaw), offering high tensile strength and resilience against impact and bending.

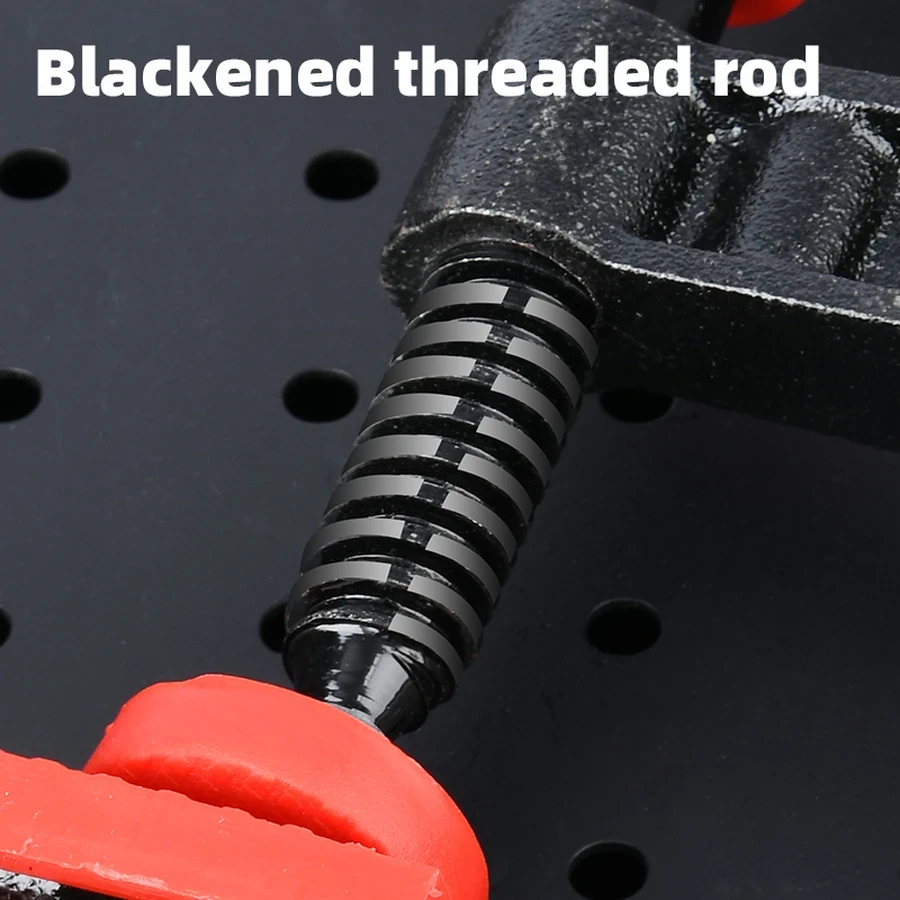

Precision Threading: Features a robust 16mm thread diameter (Sales Point 3), allowing for fine-tuned adjustment and smooth engagement to generate the high required clamping pressure.
