Specification Category |
Feature |
Technical Detail |
|
General |
SAP No / Ref No |
100156357 / EDL110112 |
|
|
Tool Name |
Quick Bar Clamp (Trigger-type) |
|
|
Colour |
YELLOW+BLACK |
|
|
HS Code |
8205700000 (Vices, clamps, and similar fixtures) |
|
Tool Specs |
Clamping Capacity |
12 inches (300mm) |
|
|
Throat Depth |
63mm |
|
|
Max Clamping Force |
90 N |
|
|
Bar Material |
A3 Steel |
|
|
Jaw Pads |
Rubber chuck |
|
Physical |
Product N.W (Unit) |
0.65 KG (Per unit) |
|
|
Product Dimensions |
48.0 x 21.0 x 3.0 CM |
|
Function |

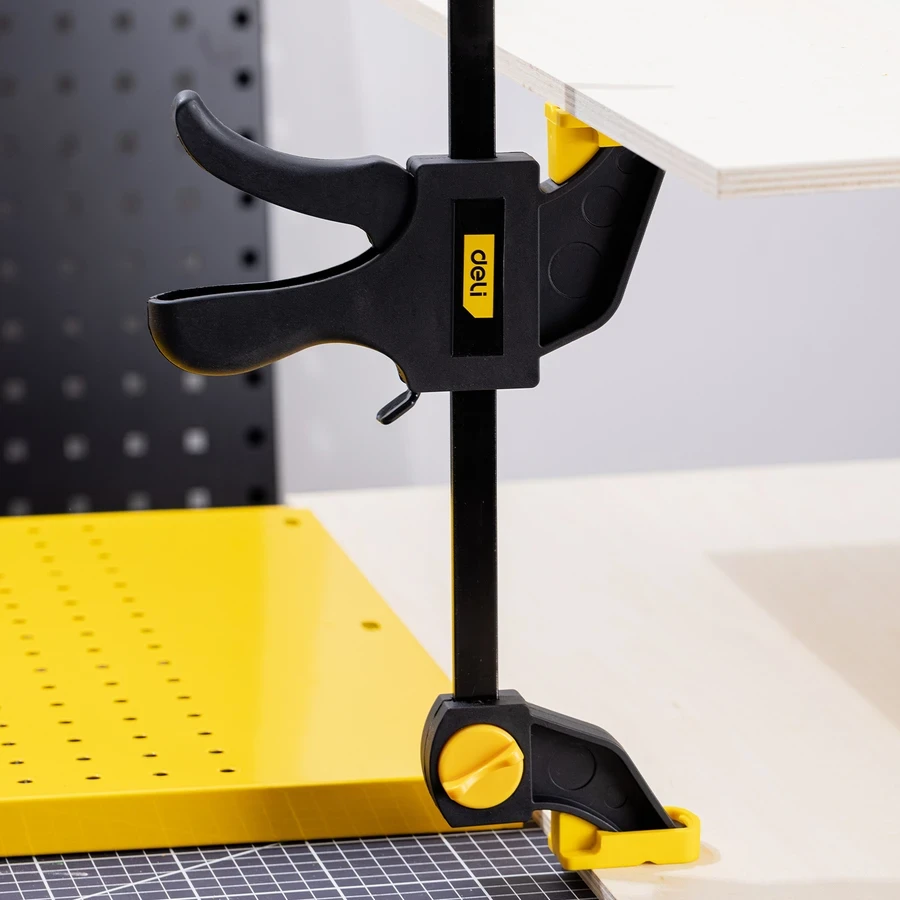

Spreader Function (Inferred) |
|
|
Reversibility |

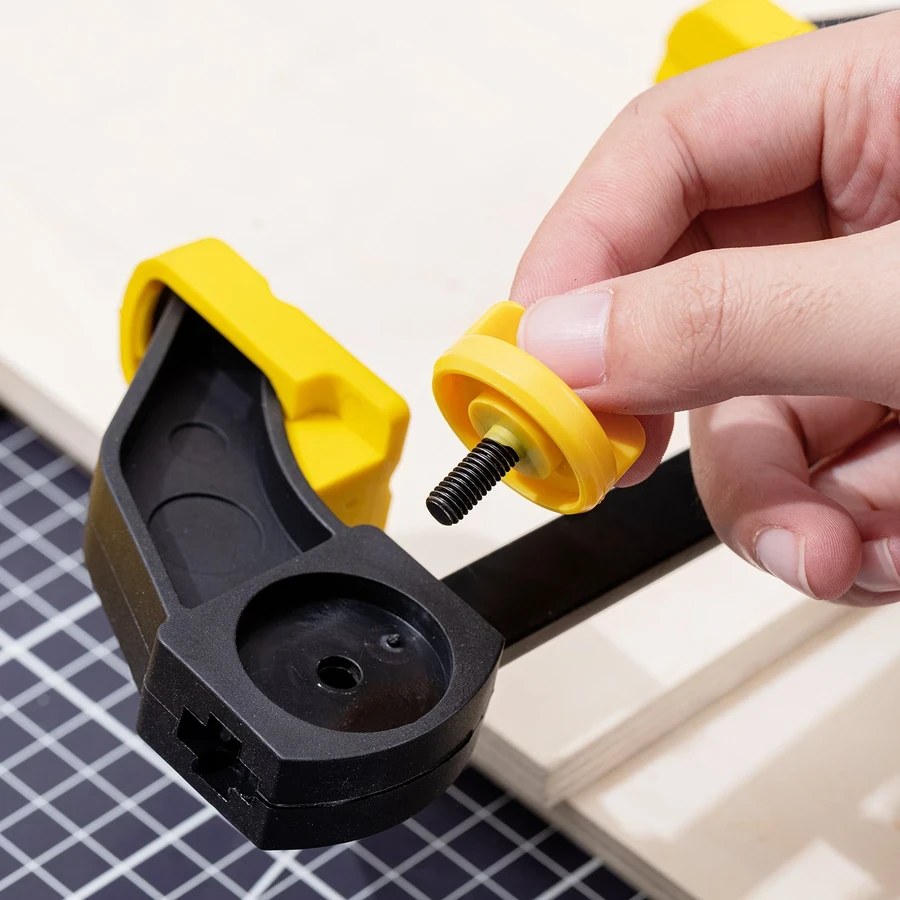

Removable End-Stop (Inferred) |
|
|
Application |
Light Gluing, Holding Trim, Picture Framing, Assembly |
|
|
Grip Material |
Reinforced Plastic (Inferred) |
|

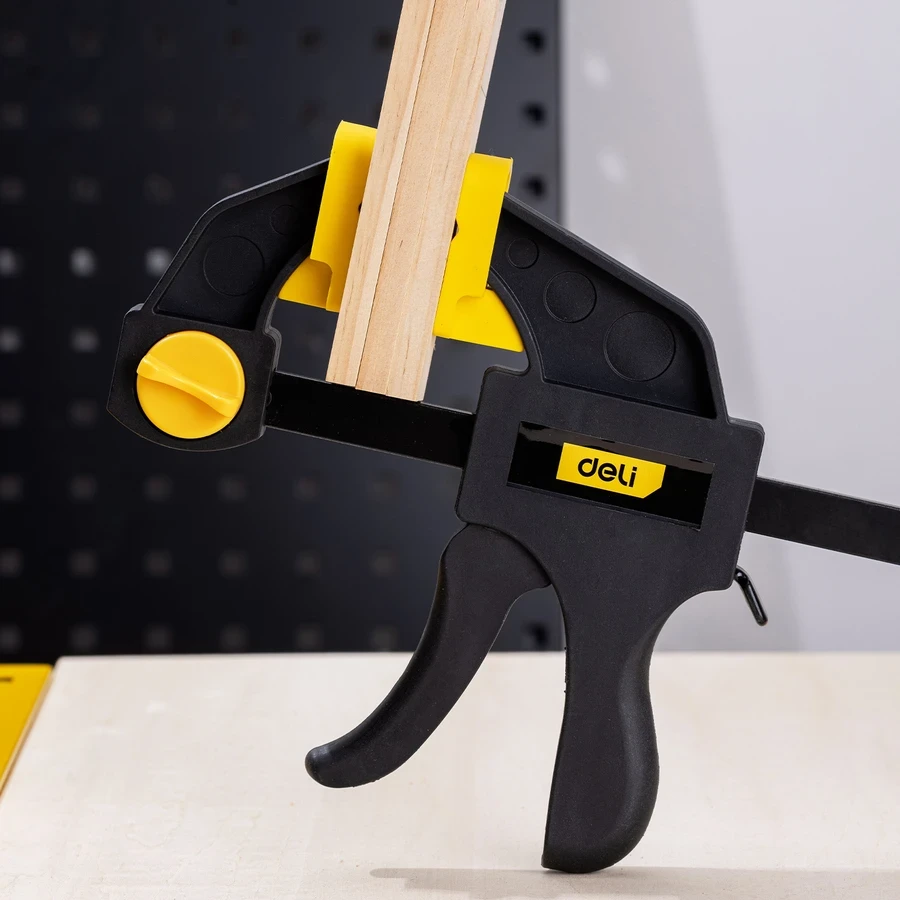

Fast One-Hand Operation: Features a Trigger-type clamp (Sales Point 1/Spec) mechanism, allowing for quick, single-handed adjustment and clamping, essential for efficiency in woodworking and assembly.

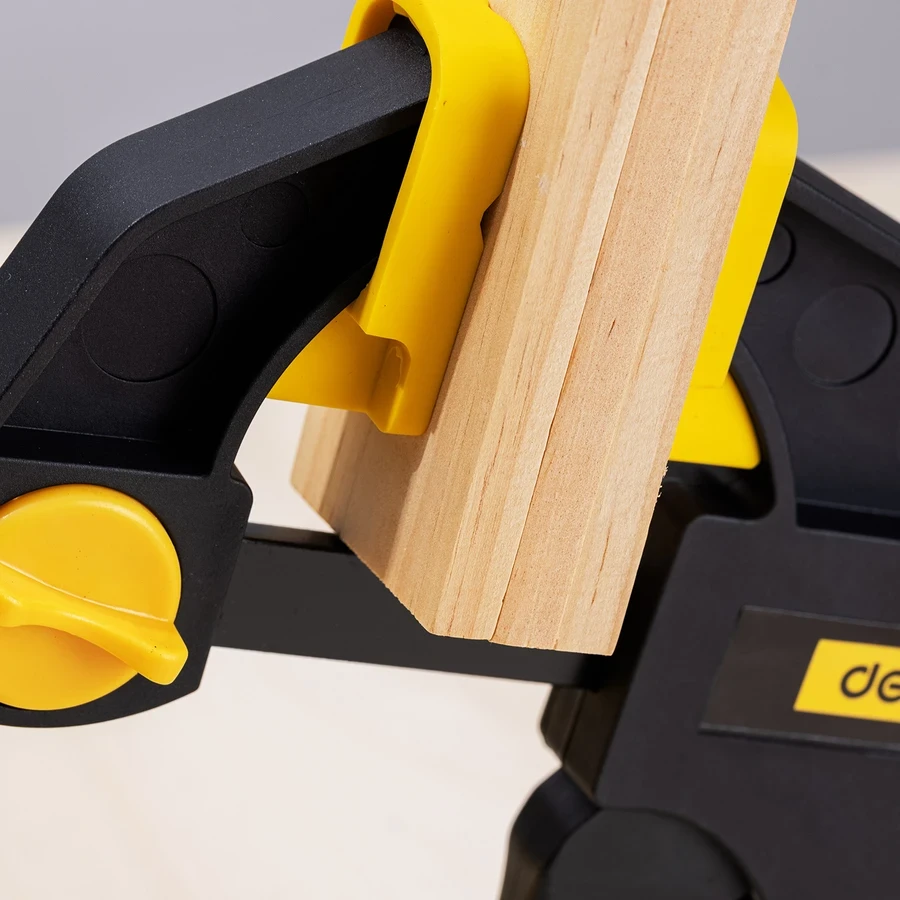

Non-Marring Grip: Equipped with a Rubber chuck (Sales Point 2/Spec) at the clamping jaws, protecting delicate workpieces from damage and marring while providing a secure hold.
Standard 12" Capacity: The clamp size provides a maximum opening of 300mm (or 12 inches) with a 63mm throat depth (Spec), suitable for most common DIY and light professional tasks.
Durable Construction: Built with a main body material of robust A3 Steel, ensuring strength and longevity for the bar and ratcheting mechanism under repeated use.
Light Clamping Force: Delivers a maximum clamping force of 90N (Spec), perfect for light-duty gluing, holding trim, or temporarily securing materials without requiring high pressure.
